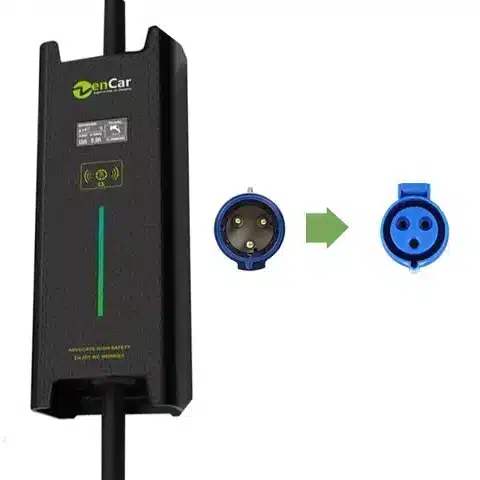

Charge Your Type 2 Socket EV Using A 230V 16A or 32A CEE Socket
This portable charger is supplied with 2 adapters that allow connection to a 16A or 32A 3 pin CEE socket found in campsites and industrial premises. The portable charger supplies a charge at either 10 amps, 16 amps, 20 amps, 24 amps or 32 amps.
Because the charger can connect to a 230V 16A and 32A socket, it is popular with EV owners that want to charge their EV when they go camping.
The 1 Phase CEE socket is also found in commercial units, but it should not be confused with the red 5 pole CEE socket that can provide up to 11kW or 22kW power.
The 16A 1 Phase CEE socket will provide up to 3.7kW and the 32A 1 Phase CEE socket will provide up to 7.4kW.
This multi adapter charger also has a timer, enabling charging to start from 1 to 10 hours after plugging in.
Please check that your CEE socket has 3 holes before purchasing this charger. If you would like a multi adapter charger that connects to all types of CEE sockets, please take a look at the charger below.
Is This Type 2 Charger Suitable For My EV / PHEV?
Choosing The Right Charger
For EV charging, it’s important to ensure the power socket is suitable. Therefore, we recommend a qualified electrician to certify that both the socket and supply have been certified suitable for EV charging.

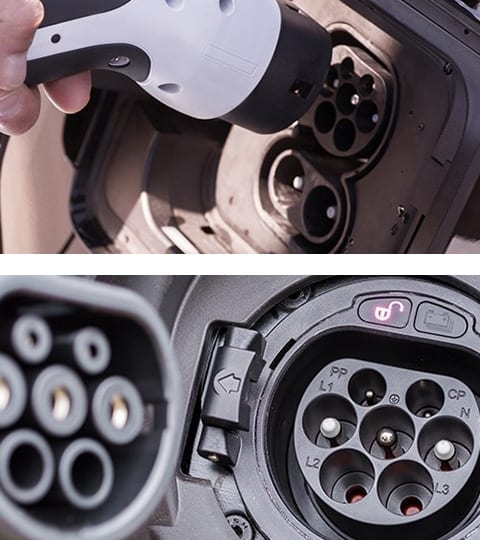

This CEE charger is compatible with all Type 2 socket EV’s .
Please also check the information at the top of this page, “Please Read Before You Buy”, to help avoid the most common reasons for returning a charging cable.
EV Cable Bag And Case
We provide a canvas cable bag (suitable for cables up to 10M) to store this charger when not in use. The bag can also be upgraded to a cable carrier case made from EVA material, which has improved waterproof and impact protection. The EVA case has an elasticated strap in the bottom compartment and elasticated mesh pocket in the top to allow convenient storage of two cables. The EVA case can hold two cables, provided each cable is no longer than 10 meters (with a total combined length of 20 meters) and is neatly wound.
1 Phase CEE Socket Charger Features
IP65 protection for the control box. TUV approved.
Conformity: IEC 61851-2 and 62196.
30mA AC Type A RCD.
Built in fault detection: Over voltage / under voltage, over current and surge protection.
PCB Overheating protection: The charging current will automatically reduce if the circuit board in the device box exceeds 75 degrees.
Technical Data
| Charging cable type | 3-pin 16A and 32A CEE sockets to Type 2 (62196-2) connectors |
| Lengths available | 5Metre, 8Metre |
| Rated current | 10A – 32A |
| Certification | 61851:2019 |
| Cable from control box to power outlet | TPE 3×2.5+2×0.75mm. Length including plug: 70cm |
| Cable to Type 2 vehicle plug | TPU 3×2.5+1×0.75mm |
| Control box dimensions | 210mm (H) x 85mm (W) x 50mm (D) |
| IP grade | Control box: IP65. Plugs when connected to sockets: IP55 |
| Operating voltage | 220V-240V AC |
| Leakage protection | AC leakage 30mA |
| Working temperature | -30°C to 50°C |
| Flame retardant | UL94 V-0 |
| Insulation resistance | 10MΩ |
